CK Worldwide 8 Series Short (Low Profile) Cups

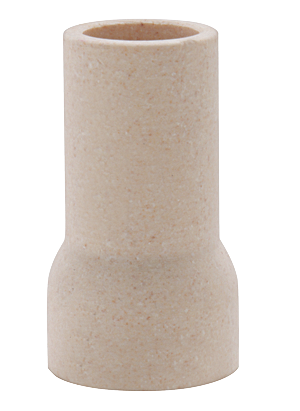

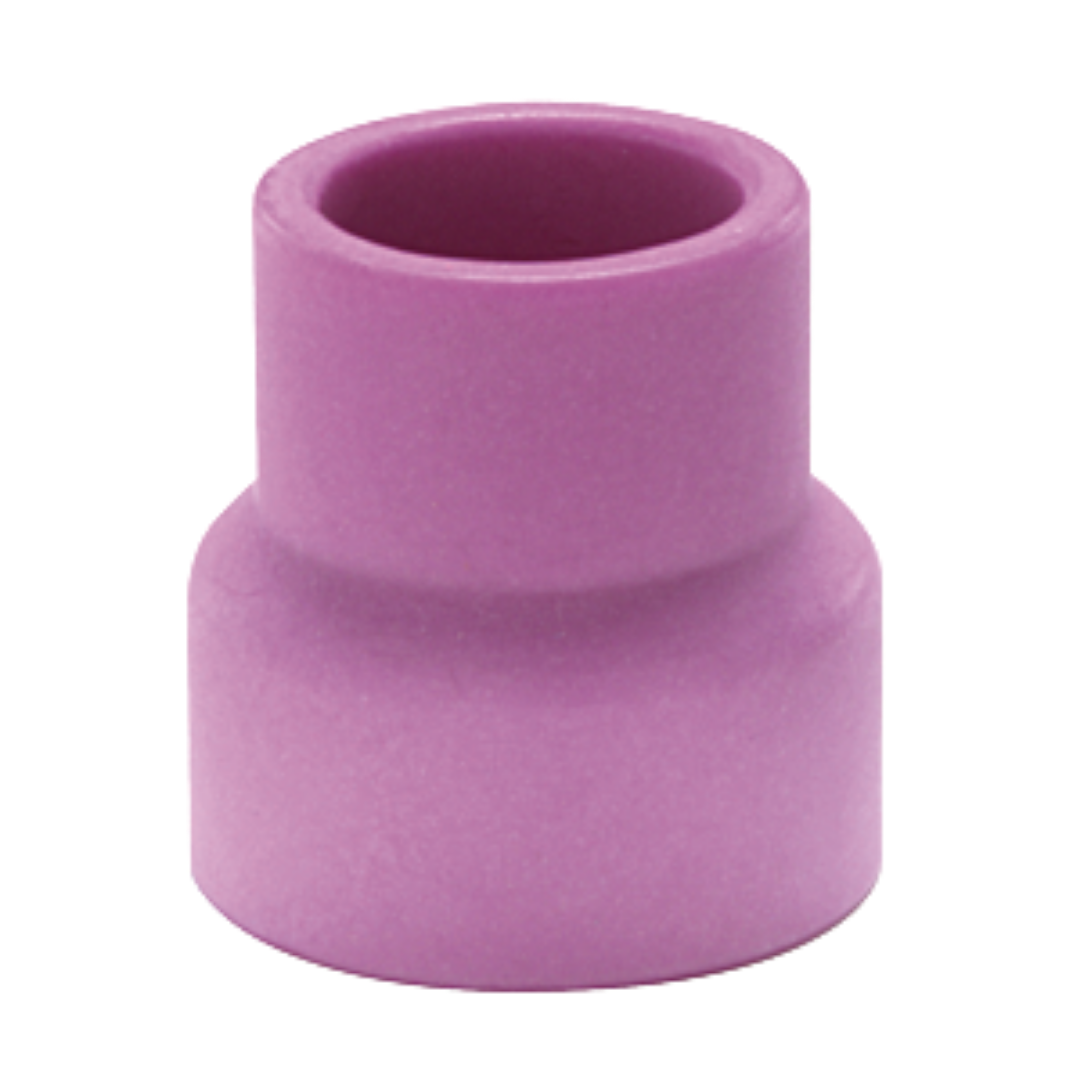

CK Worldwide short (low profile) TIG torch cups. Options below for available sizes with interchangeable Weldcraft part numbers. Alumina oxide and ceramic cups available.
5% Discount added at checkout for orders of 10+ Cups
- Sold in quantity of 1 cup per order
-
Options (Alumina Cups):
Cup Size
Orifice Diameter
CK Part#
Weldcraft part#
#1
1 8 (3.1mm)
8A1
A53N23
#4
1 4 (6.3mm)
8A4
A53N24
#5
5 16 (7.9mm)
8A5
A53N25
#6
3 8 (9.5mm)
8A6
A53N27
- Alumina cups measure 5 8 (15.9mm) in length
-
Options (Ceramic Cups):
Cup Size
Orifice Diameter
CK Part #
Weldcraft part#
#4
1 4 (6.3mm)
8C4
53N24
#4 Long
1 4 (6.3mm)
8C4L
53N28
#5
5 16 (7.9mm)
8C5
53N25
#6
3 8 (9.5mm)
8C6
53N27
#6 Long
3 8 (9.5mm)
8C6L
53N26
- Ceramic cups measure 5 8 (15.9mm) in length
-
- Long ceramic cups measure 1-5 8 (41.2mm) in length
-
Fits the following torches:
- CK9
-
- CK20
-
- CK25
-
- CK100
-
- CK110
-
- CK130
-
- CK200
-
- CK230
-
- FL2L
-
- CKM230
-
- CWH230
-
- CWM230
-
Cup Size
#1 Alumina Cup – 8A1, #4 Alumina Cup – 8A4, #5 Alumina Cup – 8A5, #6 Alumina Cup – 8A6, #4 Ceramic Cup – 8C4, #4 Long Ceramic Cup – 8C4L, #5 Ceramic Cup – 8C5, #6 Ceramic Cup – 8C6, #6 Long Ceramic Cup – 8C6L
- Alumina cups measure 5 8 (15.9mm) in length
-
Options (Ceramic Cups):
- Ceramic cups measure 5 8 (15.9mm) in length
- Long ceramic cups measure 1-5 8 (41.2mm) in length
-
- CK9
- CK20
- CK25
- CK100
- CK110
- CK130
- CK200
- CK230
- FL2L
- CKM230
- CWH230
- CWM230
-
