CK Worldwide 3 Series Gas Lens Alumina Cups



5% Discount added at checkout for orders of 10+ Cups

3 Series Gas Lens Parts Relationship

Cup		Gas Lens Collet Body		Collet		Heat Shield		Torch		Back Cap
3AGX		3GLXXX		3CBXXX 3CXXXGS Wedge		3GHS		17 26 Series		300L 300M 300S

Gas Lens Cup Options with interchangeable Weldcraft part numbers:

Cup Size		Orifice Diameter		CK Part#		Weldcraft part#

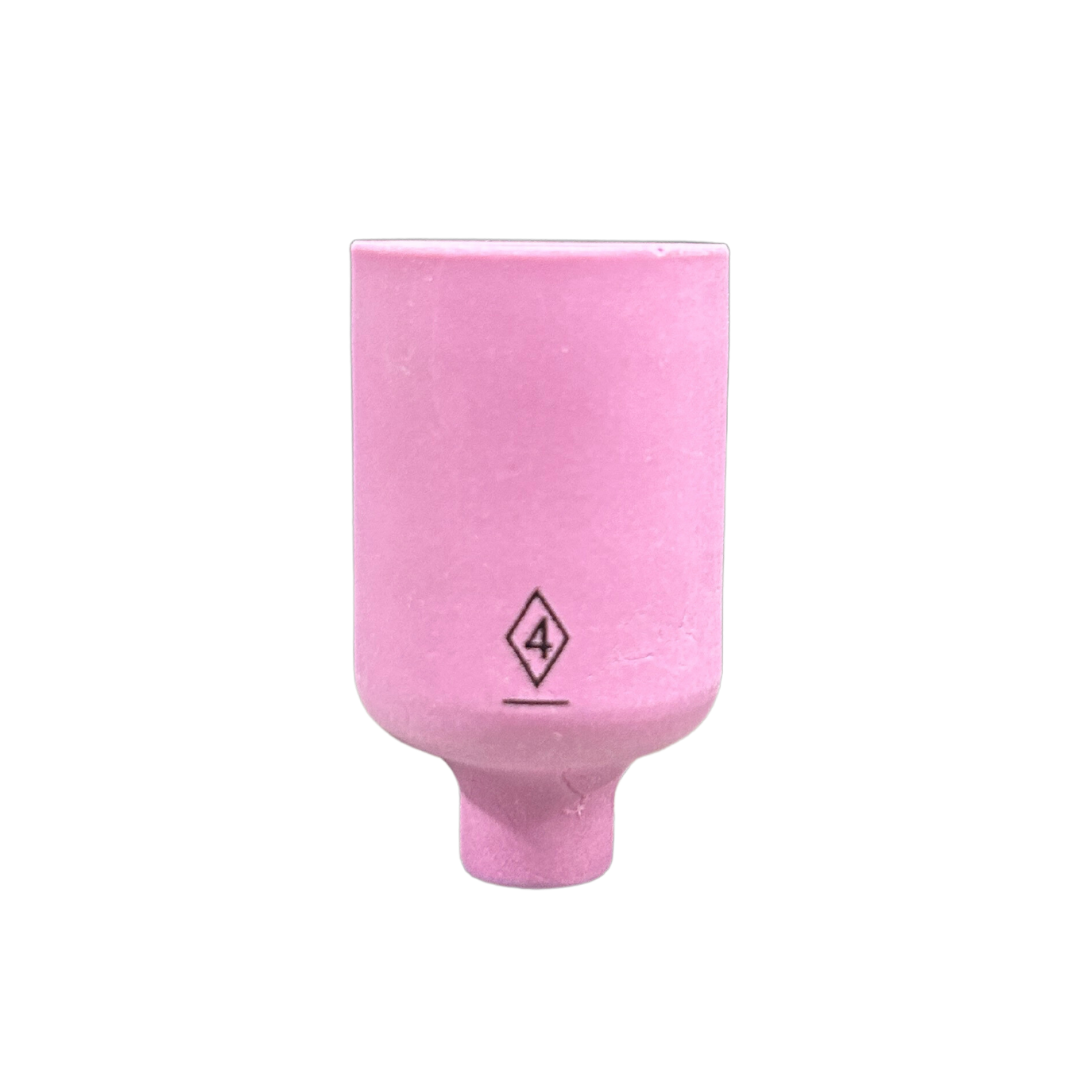

#4		1 4 (6.3mm)		3AG4		54N18

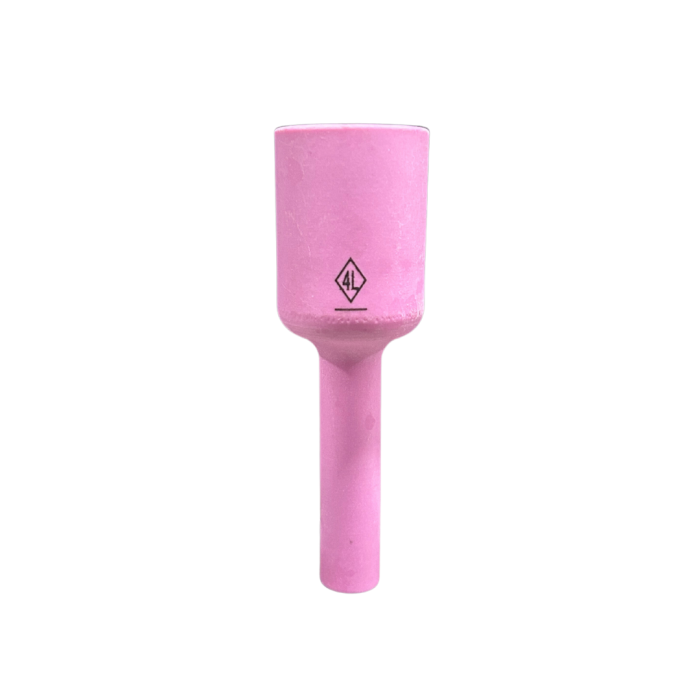

#4 Long		1 4 (6.3mm)		3AG4L		54N18L

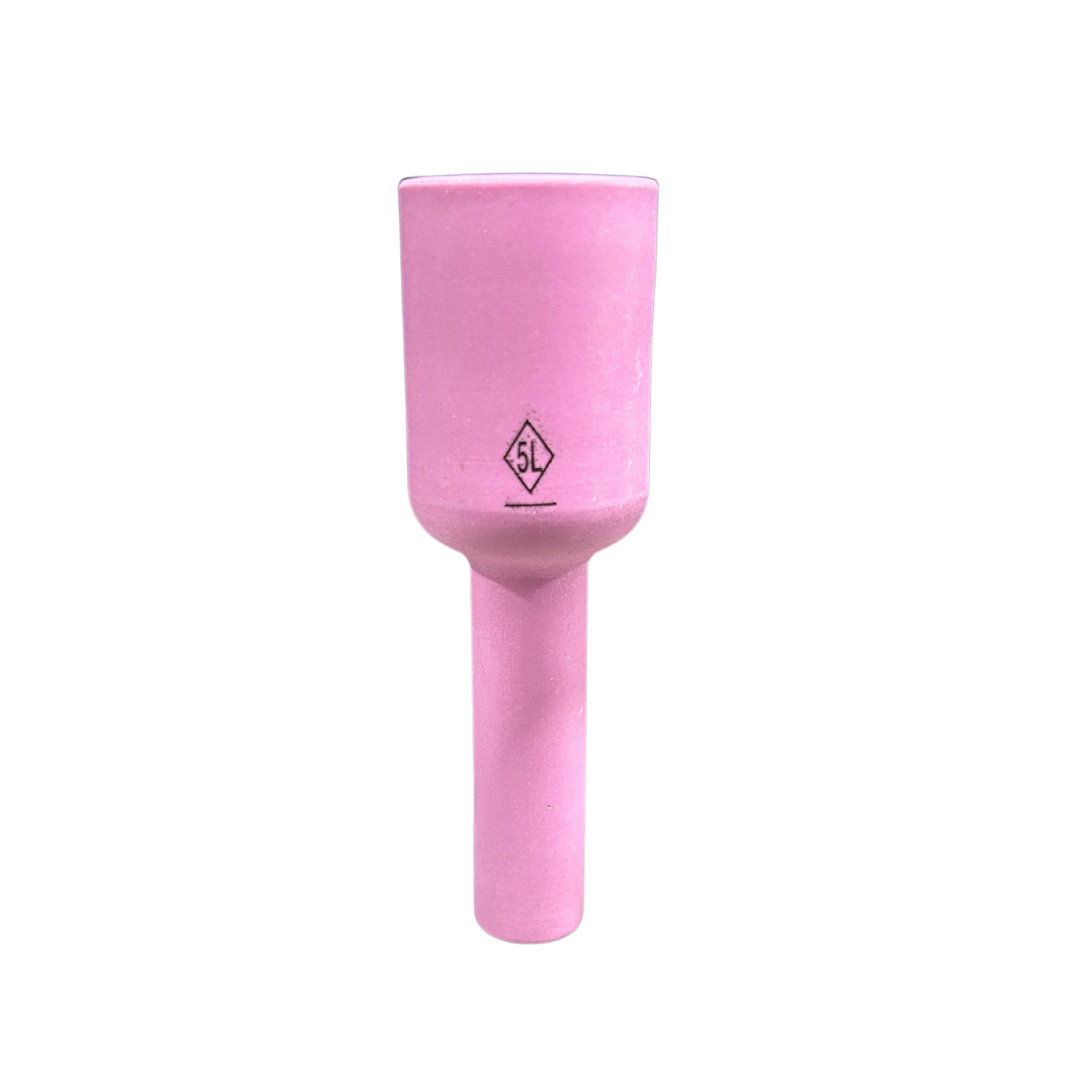

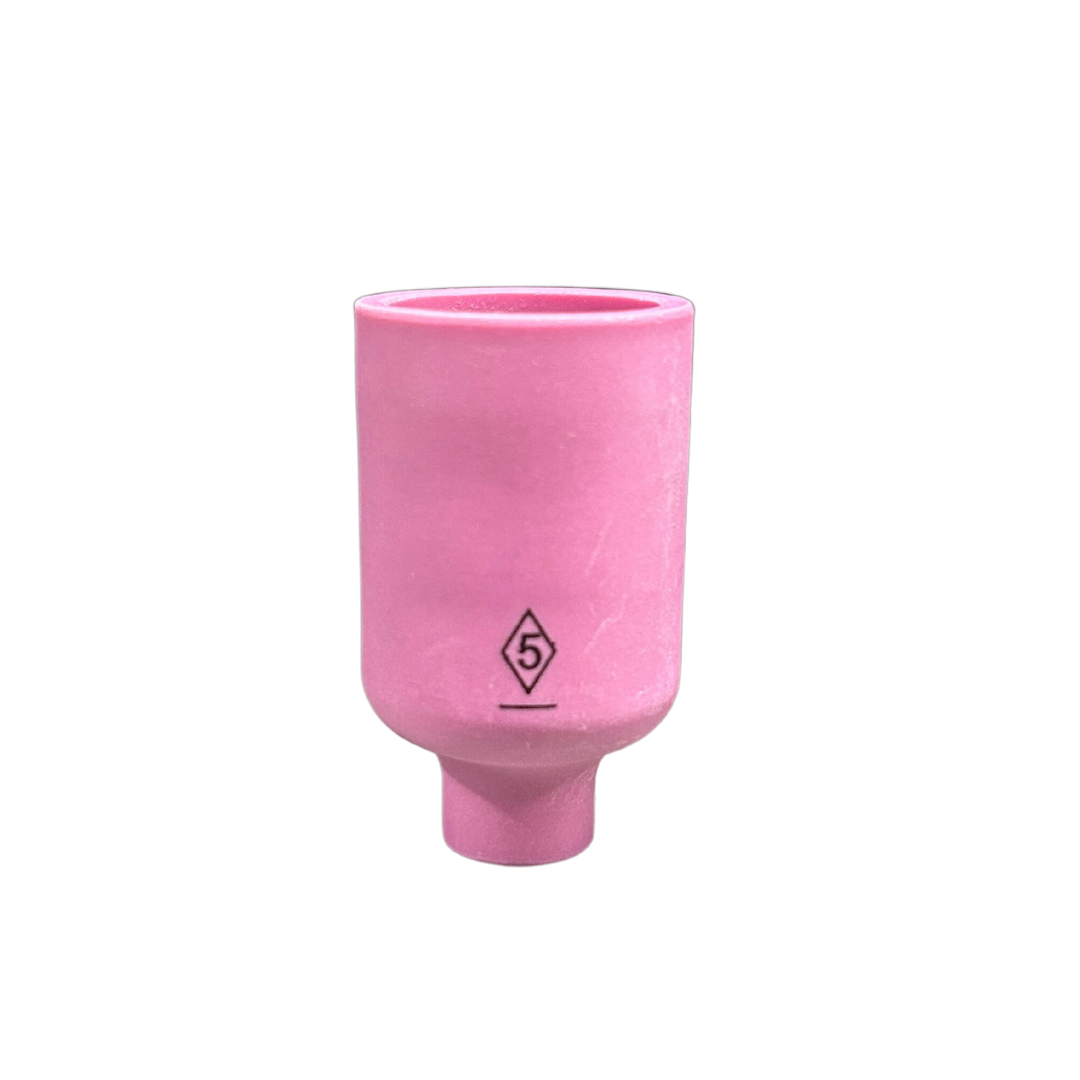

#5		5 16 (7.9mm)		3AG5		54N17
#5 Long		5 16 (7.9mm)		3AG5L		54N17L
#6		3 8 (9.5mm)		3AG6		54N16
#6 Long		3 8 (9.5mm)		3AG6L		54N16L
#7		7 16 (11.1mm)		3AG7		54N15
#7 Long		7 16 (11.1mm)		3AG7L		54N15L
#8		1 2 (12.7mm)		3AG8		54N14
#8 Long		1 2 (12.7mm)		3AG8L		54N14L
#11		11 16 (17.5mm)		3AG11		54N19
#12		3 4 (19.1mm)		3AG12

• Regular cups measure 1-5 8 (41.3mm) in length
• Long cups measure 3 (76.2mm) in length
• 3AG11 cups measure 1-1 8 (28.6mm) in length

• *A note about #11 Cups – The #11 cups came into being back in the 60’s for the shipyards. Tapered cups focus the argon and the shipyard workers needed something that would act more like a flood cup.  The shipyards being big accounts who would order large volumes drove the #11 design and it has continued to be produced this way to this day.

  Fits the following torches:

17-Series		CK210		FL3L		MT100
18-Series		CK300		TL18		MT400
26-Series		CK510		TL26		MT500
CK150		FL150		TL210		CKM350
CKC150		FL25		TL300		CS300

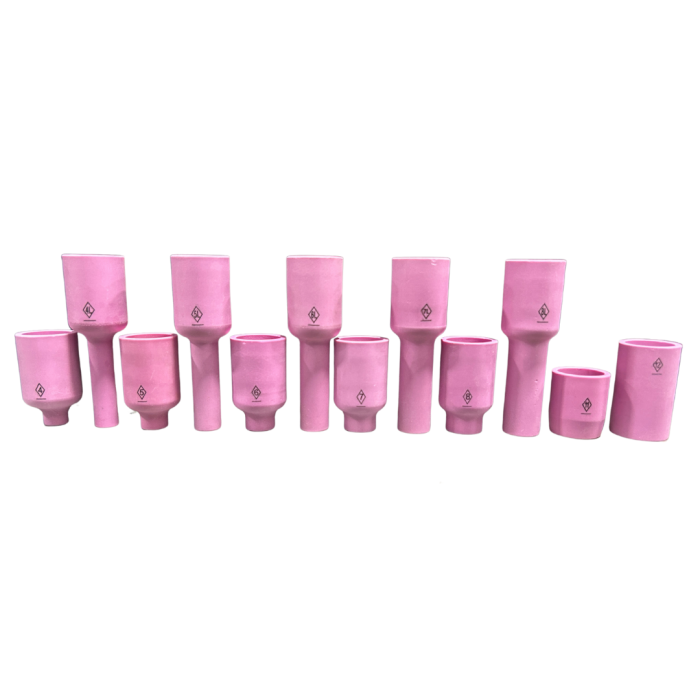

Cup Size	#4 Alumina Cup – 3AG4, #4 Long Alumina Cup – 3AG4L, #5 Alumina Cup – 3AG5, #5 Long Alumina Cup – 3AG5L, #6 Alumina Cup – 3AG6, #6 Long Alumina Cup – 3AG6L, #7 Alumina Cup – 3AG7, #7 Long Alumina Cup – 3AG7L, #8 Alumina Cup 3AG8, # 8 Long Alumina Cup – 3AG8L, #11 Alumina Cup 3AG11, #12 Alumina Cup 3AG12
