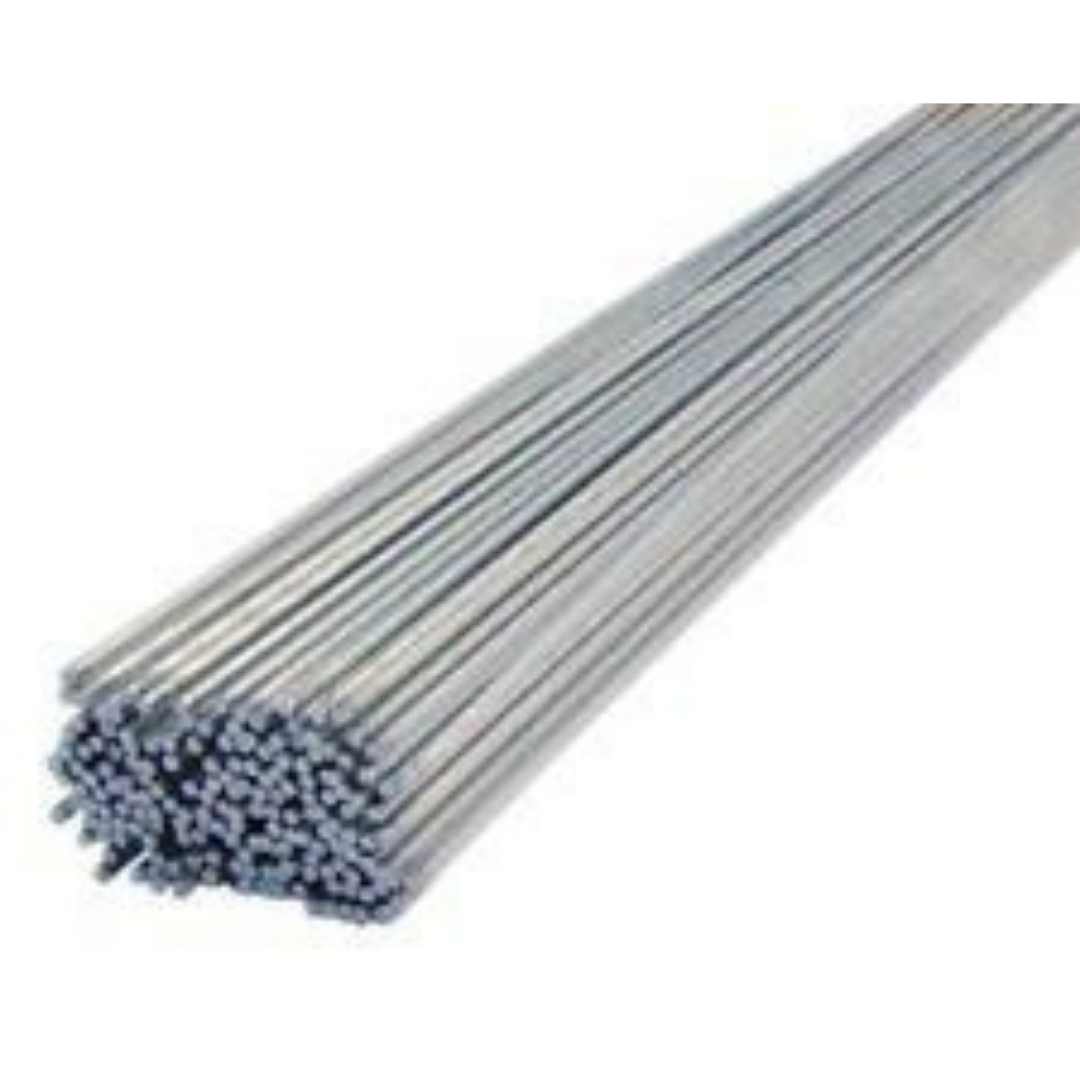

ESAB OK® TIGROD 5356 aluminum TIG rod

OK Tigrod 5356 is the most widely used welding alloy and can be classified as a general purpose type filler alloy. OK Tigrod 5356 is typically chosen because of its relatively high shear strength. The 5XXX alloy base material, welded with OK Tigrod 5356, with a weld pool chemistry greater than 3 % Mg and service temperatures in excess of 65°C are susceptible to stress corrosion cracking. The alloy is non-heat treatable.

Available in 11 lb (5 Kg) cartons – Rods are cut at 39.4 (1000mm) length

Documents, specs and fact sheet

Diameter Options:

• 1 16 (1.6mm) – 181516R15A
• 3 32 (2.4mm) – 181524R15A – Discontinued
• 1 8 (3.2mm) – 181532R15A – Discontinued
• 5 32 (4.0mm) – 181540R15A – Discontinued
