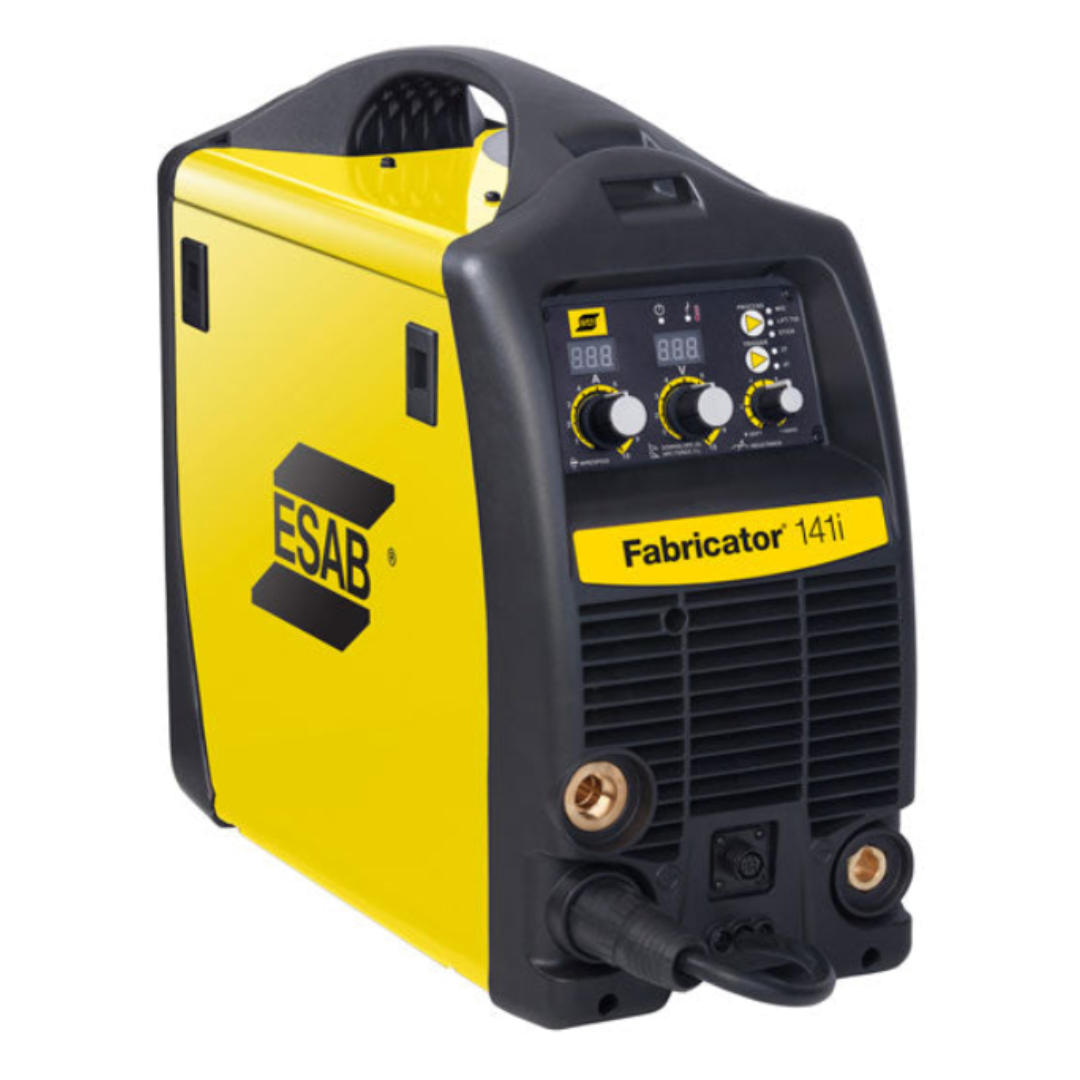

ESAB Tweco Fabricator 141i Multi-Process Welder

Limited supply in stock!

The Tweco Fabricator Series, with its leading technology, has changed the game and set a new standard for portable welding equipment delivering 3-in-1 MIG, STICK, and TIG capability from one integrated portable system.

Features

Three Process Capability: MIG (GMAW FCAW), STICK (SMAW), TIG (GTAW). MIG:

• Infinite Voltage Control for precise voltage settings.
• Inductance Control for arc stability and spatter control.
• Tweco Fusion MIG Gun w 10 ft cable and industry standard #4 connection.
• Durable Metal Feed Plate features 2 roll drive system, quick change reversible drive rolls and easy-to-set single scaled wire tension knob.
• 4 or 8 Spool Capacity allows easy installation of wire spool sizes.
• Spool Gun ready.
• Adjustable Burnback Control.

• STICK:

  • Adjustable Arc Force Control for optimum STICK electrode performance.
  • Built in Hot Start for easy arc starting.

  • TIG:

    • Lift TIG Start: Provides TIG arc starting without use of high frequency.
    • Downslope: Eliminates the crater that can form at the completion of a weld.

    • Other Features:

      • Digital Meters: Voltage and Amperage; Preview and Hold capability.
      • Excellent Portability: Lightweight, less than 33 lbs includes shoulder strap.
      • Comprehensive Setup Chart: Weld set up guide for optimum welding performance over a wide range of materials and shielding gases.
      • Trigger Control: 4T (Latch) eliminates operator fatigue.
      • Remote Receptacle: Enables connection of remote control devices and Spool Gun.
      • Quick Change Polarity: Simple quick change polarity (no tools required) from the front of the power source.
      • Overload Protection: Shuts down the power source to protect the internal electrical components from overheating.
      • IP23S: Suitable for outdoor use.
      • Intelligent Fan Control: Operates when welding commences to cool components & reduce airborne contaminants pulled through the power source.

      • Download Spec Sheet     Download User Manual

        Options

        • Tweco Fabricator 141i System – W1003141

        • What s Included in the Box?

          • ESAB® Fabricator® 141i MIG TIG Stick welder
          • Flowgauge regulator and 12.5 ft. (3.8 m) hose,
          • Electrode holder with 13 ft. (4 m) lead
          • Bonus contact tips (1 each) .023 in. (0.6 mm), .030 in. (0.8 mm) installed, .035 in. (0.9 mm)
          • Drive rolls .023 .030 in. (0.6 0.8 mm) v-groove installed, .030 .035 in. (0.8 0.9 mm) for flux-cored wire
          • Tweco Fusion 140A MIG Gun with 10 ft. (3 m) cable
          • 4 general purpose stick electrodes (E6013)
          • Power adapter 115V, 20A to 15A
          • Ground clamp with 10 ft. (3 m) lead
          • Shoulder strap
          • Operator’s manual and CD
          • 10 ft. (3m) power cord and NEMA 5-20P 115V AC plug

          • Tweco 17V TIG Torch Package W4013802 – Purchased Separately
