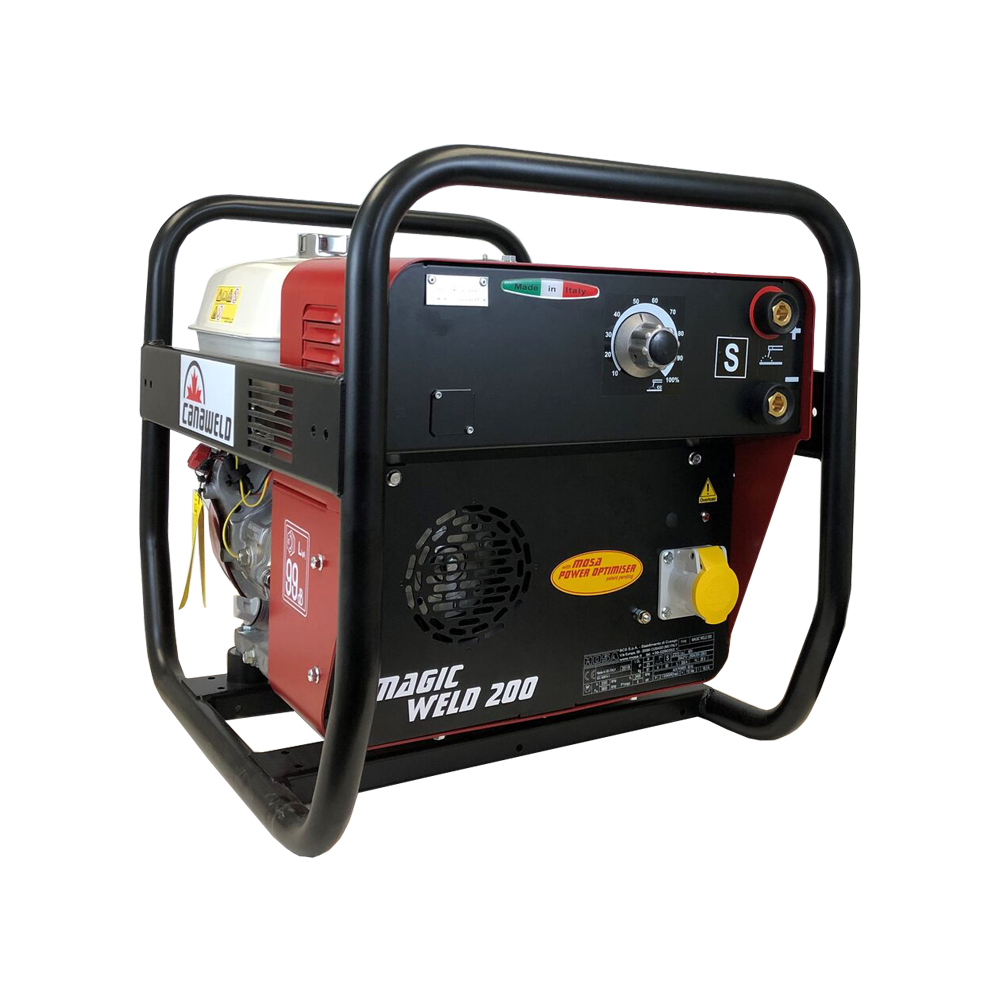

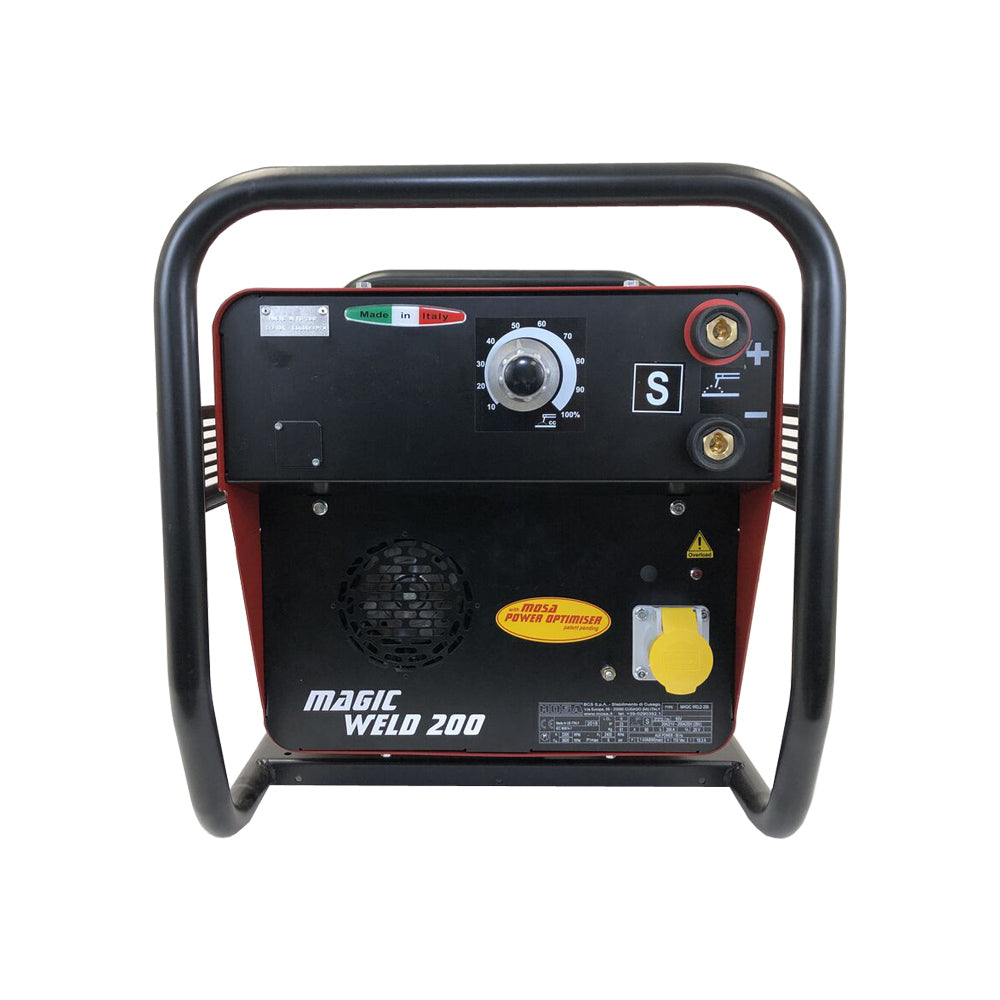

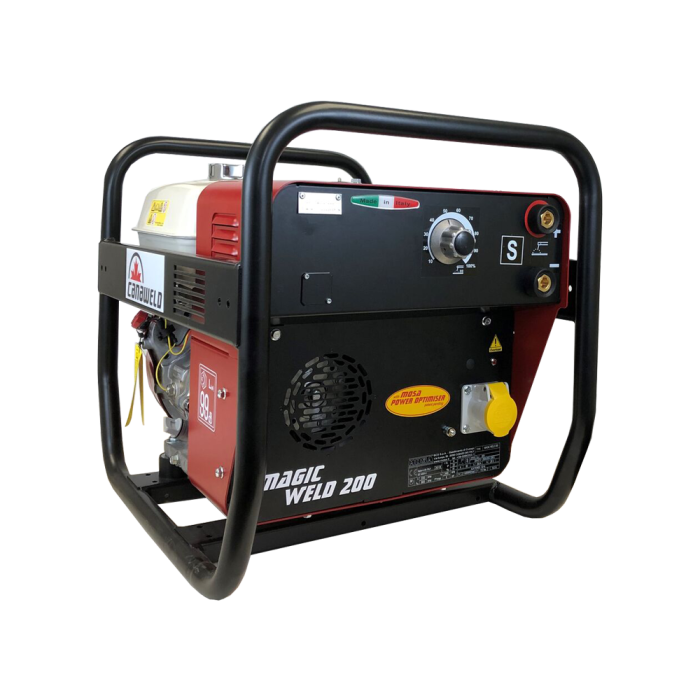

Mosa Magic Weld 200A



The Mosa Magic Weld 200A DC arc welding machine is a lightweight and compact welding generator.  Designed for professionals, with the capability of delivering up to 200 A with a duty cycle of 60%! – Yes that is not a typo 60% duty cycle and weighing in at only 135 lbs!

• DC arc welding machine

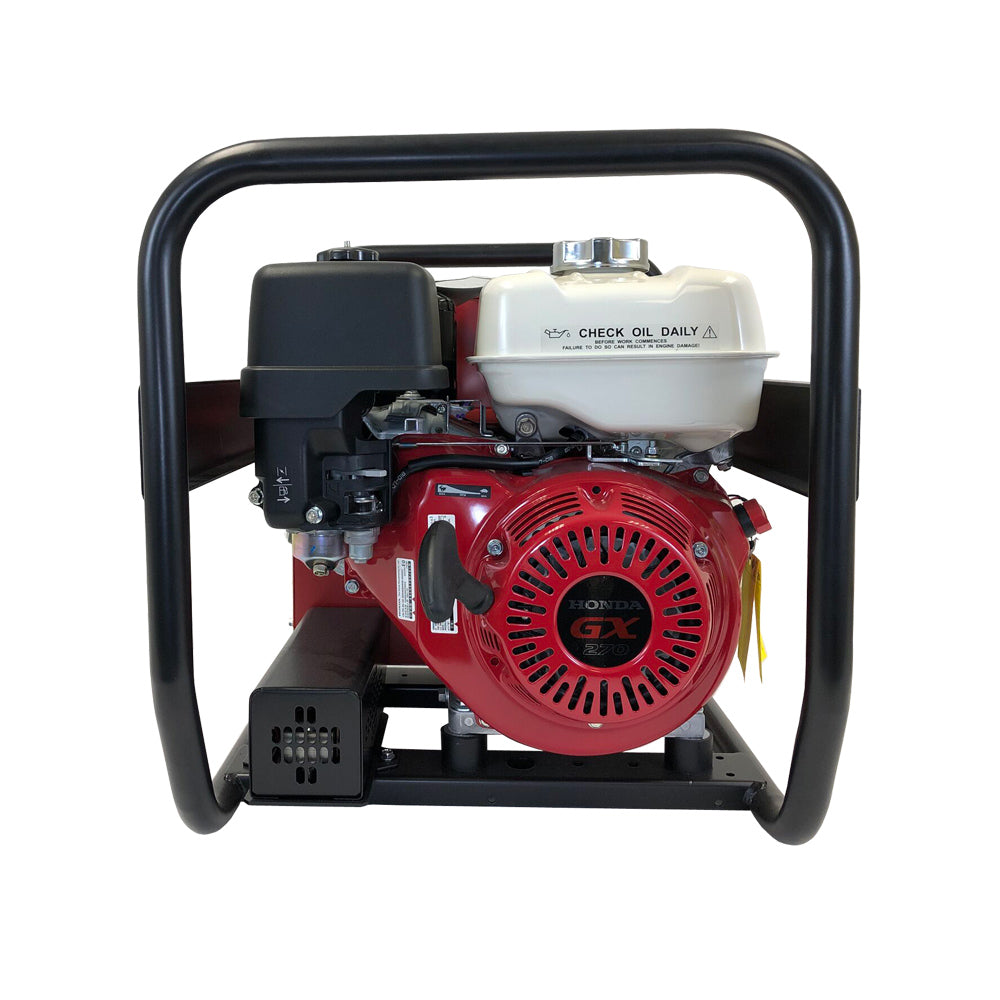

• Honda GX 270 8.5 HP Engine for reliable power and simple maintenance
• Fuel type (gasoline)
• Fuel consumption 1.5 L hr at 60% Capacity (120A)
• Welding with any type of electrode including cellulostic electrodes
• High-frequency voltage control and welding current
• High performance permanent magneto alternator
• Single-phase auxiliary current 50Hz generated inverter
• Auxiliary current AC With micro-breaks for tool protection
• Engine stop for low oil level
• Economizer function
• Mosa Patented Power Optimizer allows for peak welder performance without overloading or damaging drive engine
• Full steel frame for machine protection
• CE Certified
• Permanent magnet alternator, self-excited, brushless
• Dinse 35 (50mm) connections (connectors not included)
• Made in Italy
• Two year Mosa Warranty

• Options

  • Basic Package

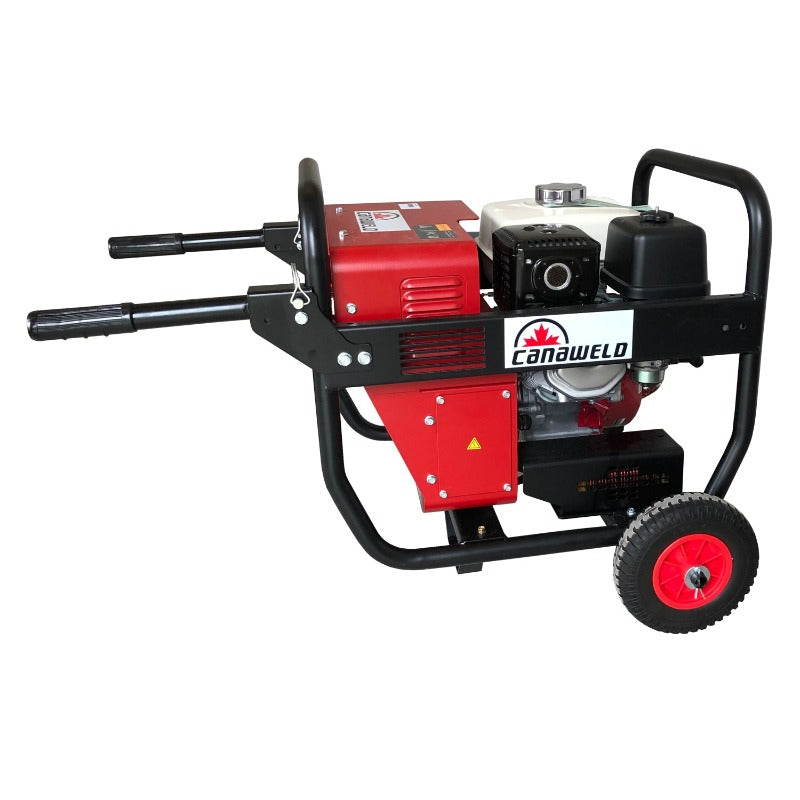

  • Add Wheel & Handle Kit

  • Please note, extra freight charges apply due to heavy weight.

    Mosa Magic Weld 200 User Manual    Honda GX 270 Manual

    Adjustment Range		20 – 200A
    Duty Cycle		200A – 60%
    Fuel Tank Size		5.3L (3.5 hours welding time)
    Open Circuit Voltage		70V
    Single Phase Power Max		3.25KW 230V cc 14.1A – 50Hz
    Continuous Single Phase Power		2.8KW 230V cc 12.2A – 50Hz
    Auxiliary Power:		1x 120V AC 60Hz, 2.1kW, 18.3A
    Dimension		630 x 490 x 540 MM 24.75 x 19.30 x 21.25 IN
    Weight		61 Kg 135 Lbs



    Options	Basic Package, Add Wheel & Handle Kit
